VolSquirt Plug N Play Standalone ECU for M4.3/4.4 Equipped 94-98 Volvo's

The Hell Moose Performance LLC VolSquirt Plug N Play Standalone ECU is based on Megasquirt 3 Pro, which is a proven, well adopted and well supported aftermarket engine management solution. The VolSquirt ECU uses a Megasquirt 3 Pro Daughter board and a custom designed Hell Moose Performance LLC motherboard to adapt all OEM system functionality and make the system fully plug and play. The ECU uses the stock connector and case so that one doesn’t have to do extensive wiring modification (or design a completely new harness) in order to adapt the power of an aftermarket engine management system. So far it has been adapted to the following vehicles :

TABLE

** THIS ITEM IS BUILT TO ORDER MAY TAKE 5-10 BUSINESS DAYS FOR MANUFACTURING **

Retains stock M4.3/4.4 ECU Connector & Case & FULL OEM COMPATIBILITY Compatible with Auto & Manual gearboxes Onboard MCU with custom firmware and CAN interface to provide OEM features that MS3-Pro cannot run.

Features :

1. MS3-Pro Daughter Board
2. Plug N Play To Completely Replace Factory System
3. Compatible with all OEM sensors & actuators (crank, cam, throttle, coolant, idle air, boost solenoid, etc.)
4. Onboard 4 Bar MAP & BARO Sensor For Speed Density
5. Onboard USB B Connection For Communcation With TunerStudio
6. External 24 Pin Connector (vvt, flex fuel, water/meth, staged injection, speed sensors, extra IO)
7. External 12 Pin Connector (coil on plug, extra IO)
8. Knock Sensor Control with per cylinder detection and correction Loads of safety features (AFR warn and cut, EGT warn and cut, over boost, oil pressure, etc.)
9. COP
10. Dual VVT (Using ME7 cam sensor)
11. CANBUS extensibility

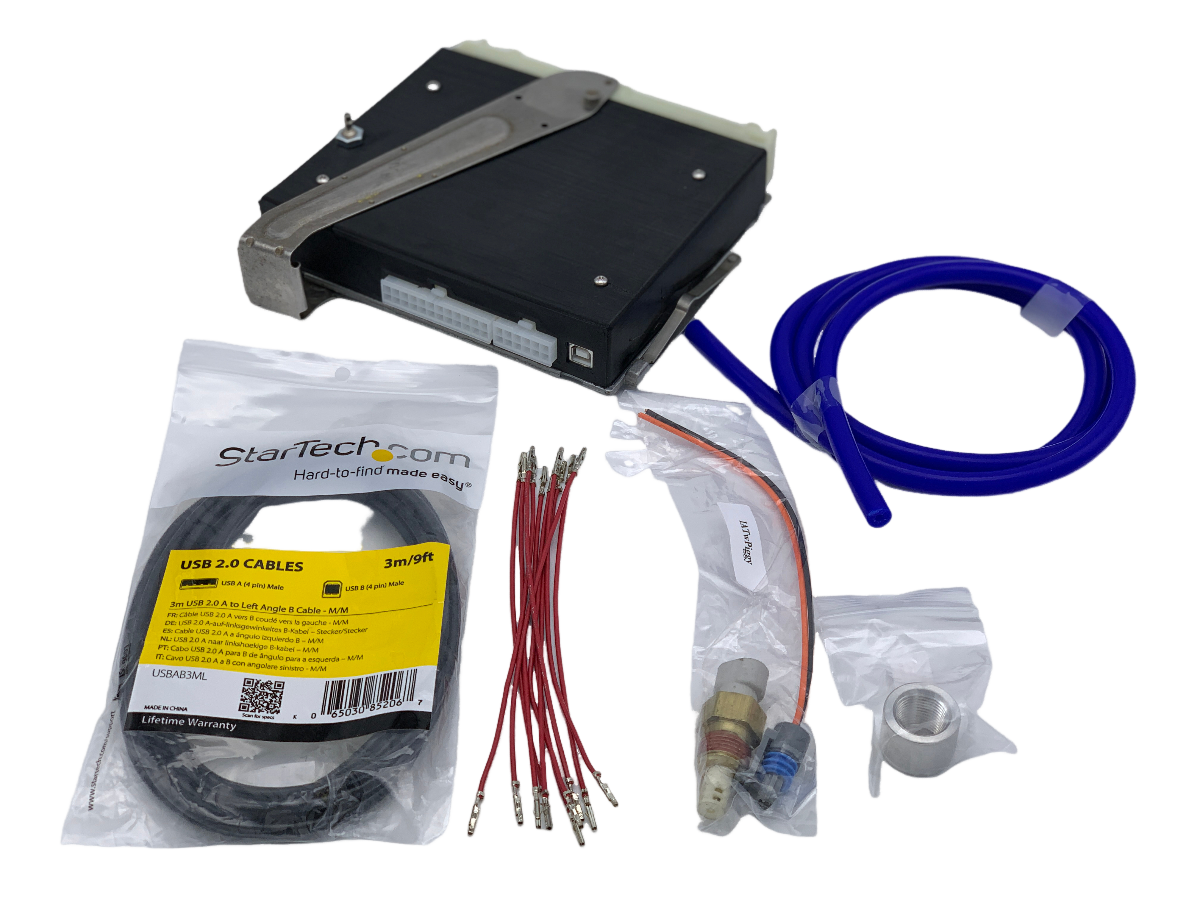

Included In Kit :

1. Volsquirt ECU (qty: 1)

2. USB B Cable (qty: 6ft)

3. Vaccuum Line (qty: 5ft)

4. GM IAT Sensor (GM P/N : 25036751) (qty: 1)

5. GM IAT Sensor Pigtail (qty: 1)

6. Molex Pig Tails (qty: 10)

7. 3/8 ” NPT Bung (qty: 1)

8. Turnkey Base Tune for MS3PRO 1.5.1 (qty: 1)

9. PDF Instruction Manual (qty: 1)

To Be Supplied By Customer :

1. Wideband Oxyngen Controller + Sensor with 0-5V or CANBUS output (recommended AEM X-Series)
2. Tuning Service

It is the customers responsibility to tune the system themselves or find a tuner. We do not offer any remote or local tuning.

** The VolSquirt/Megasquirt is not legal for road use on pollution controlled vehicles. Standalones are for off road use only! **
